Specification

The HydroForce™ Series 3 is an electronically-controlled, pressure-sensitive, submersible, centrifugal roto-dynamic pump with no reciprocating parts.

  • Pressure-sensitive (demand) pump which turns itself off until there is a demand for water.
  • Max head (nominal) 35 metres, pump pressure (nominal) at outlet 3.5 bar, max suction 3 metres.
  • Dry-run Protection: when no water is detected for 8 seconds, the pump is turned off by the printed circuit board (PCB) in order to protect the motor and pump from burning out. Automatic reset after a period of 30 minutes. If water is still not detected, subsequent reset periods are 1.5 hours, 3 hours, 7 hours, 12 hours, 24 hours then back to the beginning of the Pump diagram cycle. Additionally, a thermal switch, not connected to the PCB, turns the pump off when motor overheats. It resets when cool which make take several hours.

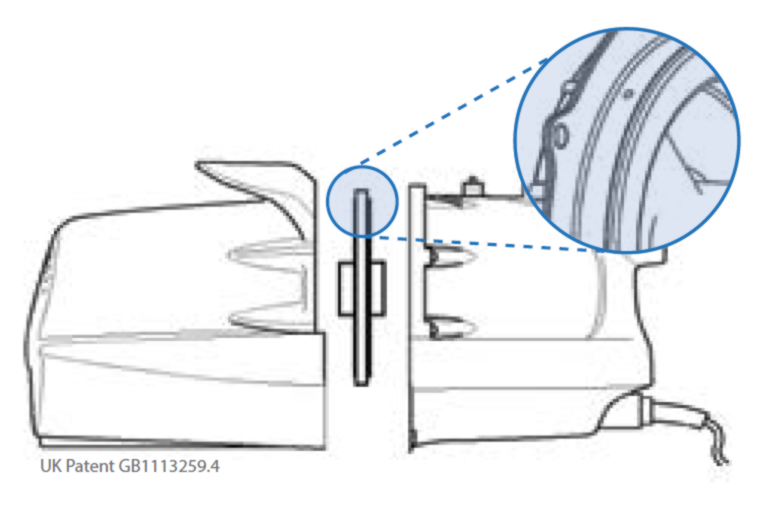

  • NEW: Alloy bulkhead (pictured below), pressure release gap and twin chamber design prevents ingress of water to motor, electrical components and to bearing oil.
  • NEW: Double bearing seal prevents egress of bearing oil.
  • NEW: Alloy bulkhead dissipates motor heat to water in the second chamber.
  • NEW: Logic processors in PCB prevent other pump anomalies and permit factory programming of reset timings.
  • OPTIONAL: Inlet cartridge filter, inlet strainer and output pipe connector are factory-fitted and the seals tested to ensure proper running of the pump.
  • Guaranteed for 2 years.
  • Electricity consumption 800 watts at 220-240 Volts AC 50 Hz (requires 10 or 13 amp fuse and RCD mains socket). Connection cable 10m H07RN-F.
  • Inlet port to the non-removable filter 1 inch (25mm) female BSP. Output port 1 inch (25mm) female BSP provided with push-fit connector for 1 inch (25mm) MDPE pipe (11/4 inch (32mm) connector option by special order).
  • Dimensions L 565 W 185 H 260 mm, weight 13.1 kgs.

Optional cartridge filter and secure, impact resistant packaging.

Delivering up to 3.5 bar and a maximum flow rate of 2500L/hour. The pump uses 800W at 220-240v AC.

Inbuilt pressure sensitive switch- the pump will automatically start when it registers a pressure drop.

Suitable for total immersion in tank water or it can be externally connected to the tank above ground.

The patented alloy bulkhead, pressure release gap and twin chamber design prevents ingress of water to motor, electrical components and to bearing oil.

Can be supplied with multi lingual, easy to use, illustrated installation instructions. Includes a two year manufacturers warranty.

Integrated dry run protection system, switches the pump off when no water is detected after 8 seconds in order to protect the motor and pump from burning out. It then goes through a smart sequence starting briefly to test until water is available.

The pump and electronics have been completely re-engineered from scratch to give outstanding reliability and optimal performance.

Pump components diagram In-line Filter 800W at 220v - 240v Pressure Sensitive Switch Submersible Alloy Bulkhead Manual Dry Run Electronics

* As of 1st November 2013 the HydroForce Series 3 Pump does not include the inline cartridge filter.
